Waterproof Solar Fuse 10A/20A

SKU:
Fasten the Seat-belt for your SP100 Solar Panels and Generators
********************************************************

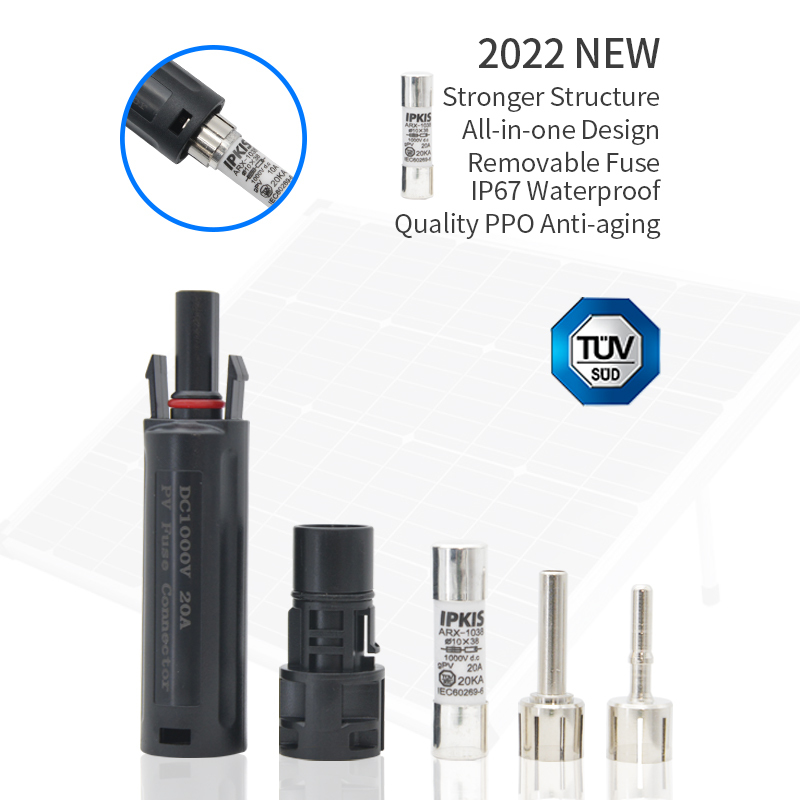

2022 NEW Stronger Structure
Quality PPO Anti-aging & IP67 Waterproof
Lower contact resistance
0.0 (0 Reviews)
16 Sold
$12.90 $9.90
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
  • Comb:

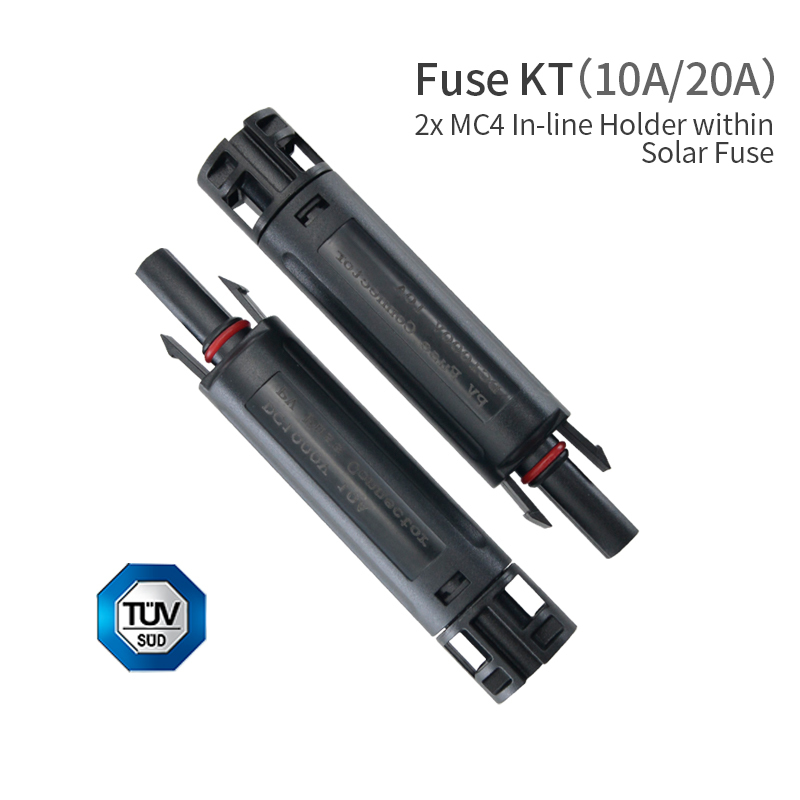

    KT: 2*MC4 holder W/ Fuse

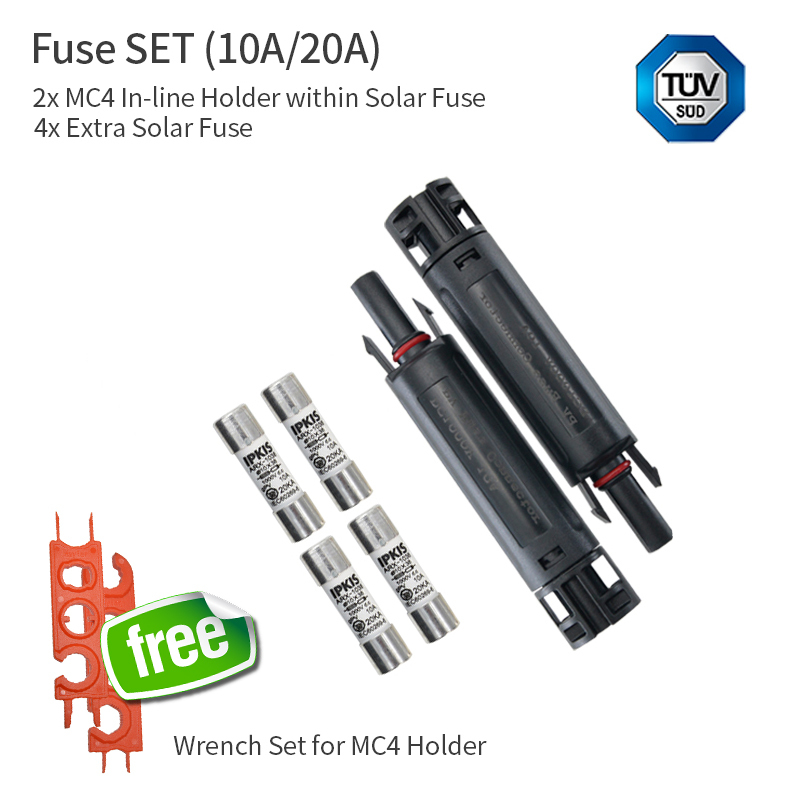

    SET: 2*MC4 Holder W/ Fuse +4*Extra Fuse+Free Wrench
  • SPEC.:
    10A
    20A
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Waterproof Solar Fuse 10A/20A
  • Waterproof Solar Fuse 10A/20A
  • Waterproof Solar Fuse 10A/20A
  • Waterproof Solar Fuse 10A/20A
  • Description

Description and Features


►  Solar Fuse: It’s a great protection for your XTAR SP100 and even you whole solar system include solar controller.  It will quickly interrupt the circuit once the fuse's rated amperage is exceeded, which can avoid the damage to the photovoltaic appliances.

►  EASY INSTALL and STABLE: With the built-in lock on the MC4 male connector, this solar in-line fuse connector can keep stable work outdoors. Made with quality fire-proof PPO with strong pulling force capacity, this solar fuse connector is resistant to UV and aging.

►  Dust-proof and Water-proof: With a IP67 protection degree waterproof ring on the male connector, this solar fuse connector can keep you worry free for rainy days and out-door dust.

►  Less Power Consumption: With lower contact resistance fuse ( ≤0.2mmΩ) and higher current/voltage load capacity, it costs less solar power when protect the solar system.

►  TUV certified, and can be used under extremely high & low temperature


Order Solar Panel Accessories Bundle for Free Shipping now, Save $31 at least!



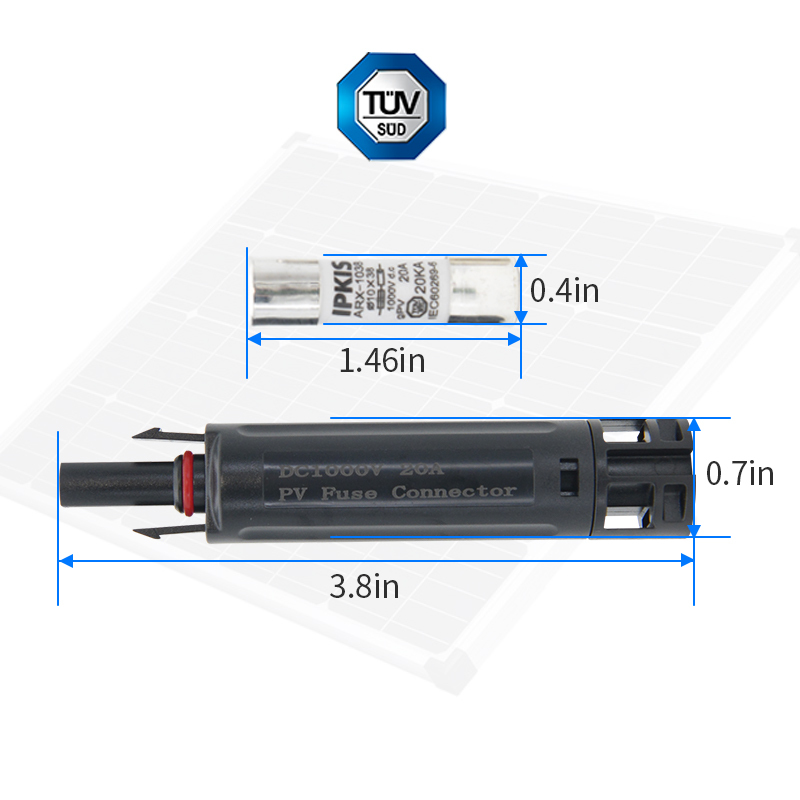

Specification:


Rated Current: 10A/20A
Rated voltage: 1000VDC
Contact resistance: ≤0.2mmΩ
Waterproof degree:IP67
Flame class: UL94-VO
Safety Class: Ⅱ
Withdrawal force: ≥50N
Pin dimension: 4.0mm dia.
Insertion force: ≤50N
Insulation material: PPO
Connecting system: crimping connection
Contact material: copper, tin plated
Ambient Temperature range: -40 ℃ ~ +90 ℃
Product Temperature range: -40 ℃ ~ +135 ℃



How to select the SPEC.?

If you have only one SP100 (solar panel), you can choose Fuse 10A (KT or SET).
If you have more than one piece,  you can choose Fuse 20A ( best to connect Fuse 10A together to protect each piece of them)



How to change new fuse and disassemble MC4 connector


PS: The free wrench is also can be used for disassemble other PV connector

How to Connect with SP100 solar panels


Single Solar Panel:
A. ①SP100 + ②DC7909/8mm to MC4 Connector+ ③10A Solar Fuse + ④MC4 to other connector+ ⑤Solar Generator
Two Solar Panels in parallel:
B. ①SP100*2 in Parallel W/ Y-cable(8mm)+②DC7909/8mm to MC4 Connector+ ③20A Solar Fuse + ④MC4 to other connector+ ⑤Solar Generator
C.(The most safest way/ Contact us for instruction picture) ①SP100 with 8mm to MC4 connector*2 +②10A Fuse*2+ ③MC4 Parallel connector w/ 20A fuse+ ④MC4 to other connector+ ⑤Solar Generator



Safety Tips
1.For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
2.The end product must provide protection from electric shock.
3.Unplugging under load: PV plug connections must not be unplugged while under load. 4.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.




Frequently Bought Together
  • SP150 Accessories
  • FS1
more
Frequently Bought Together
SP150 Accessories
Total: $ 495.70
Save $-424.90 for buying together
FS1
Total: $ 101.60
Save $-36.80 for buying together
